Hydraulic pressure drives log splitting force by pushing hydraulic oil against a piston inside the cylinder. The pressure acts across the piston area and creates linear force, which moves the ram or wedge into the log. In simple terms, higher hydraulic pressure or a larger cylinder bore can produce greater splitting force.
However, the rated tonnage of a Hydraulic Log Splitter is not determined by pressure alone. Cylinder diameter, pump flow, relief-valve setting, hydraulic efficiency, wedge geometry, log condition, and system losses all affect real performance. Understanding these relationships helps users compare log splitters more accurately instead of assuming that the largest engine or highest pressure automatically means the strongest machine.
QHM supplies different Log Splitter configurations for residential firewood preparation, farms, landscaping work, and heavier wood-processing applications.
A hydraulic log splitter converts engine or electric-motor power into hydraulic energy and then converts that hydraulic energy into linear movement.
The basic system includes a power source, hydraulic pump, oil reservoir, control valve, cylinder, hoses, and splitting wedge. The engine or motor rotates the hydraulic pump. The pump moves oil from the reservoir into the cylinder. As oil enters the cylinder under pressure, it pushes against the piston. The piston rod then drives the wedge or moving plate against the log.
The basic operating sequence is:
Engine or Motor → Hydraulic Pump → Pressurized Oil → Hydraulic Cylinder → Ram Movement → Splitting Wedge → Log Separation
The important point is that the engine does not push the wedge directly. It powers the pump, while the hydraulic system creates and transfers the force required for splitting.
This is one reason hydraulic systems work well for difficult wood. They can apply a controlled force over a relatively slow stroke rather than relying on a sudden impact.
The basic hydraulic force equation is:
Force = Pressure × Piston Area
Or:
F = P × A
Where:
F = hydraulic cylinder force
P = hydraulic pressure
A = effective piston area
This equation explains why both system pressure and cylinder size matter.
If two machines operate at the same pressure but one has a larger piston area, the larger cylinder can generate more force. Likewise, if two cylinders have the same bore but one hydraulic system operates at a higher allowable pressure, that system can theoretically generate greater force.
This relationship also explains why comparing only hydraulic pressure between two log splitters can be misleading.
For example, a small cylinder operating at relatively high pressure may generate less splitting force than a larger cylinder operating at a somewhat lower pressure.
The complete hydraulic design must therefore be considered rather than one specification.
Cylinder bore is one of the most important factors in a hydraulic log splitter.
The piston area increases according to the square of the piston radius:
Area = π × radius²
Because area increases rapidly as cylinder diameter grows, even a moderate increase in bore can significantly increase theoretical force at the same hydraulic pressure.
For example, if two hydraulic cylinders operate at the same pressure, the cylinder with the larger bore will create greater extension force.
This is why heavier-duty splitters normally require a hydraulic cylinder sized for the intended tonnage rather than simply using a more powerful engine.
A larger cylinder also has trade-offs. It requires more hydraulic oil to travel the same distance. If pump flow remains unchanged, the larger cylinder moves more slowly.
This creates an important design balance:
Larger Cylinder = More Potential Force but More Oil Required per Stroke
A correctly designed log splitter matches cylinder bore, pump flow, engine power, system pressure, and required cycle time.
Higher pressure can increase force, but simply increasing pressure is not a safe or effective way to upgrade a hydraulic log splitter.
Every hydraulic component has a rated operating pressure. This includes the pump, cylinder, hoses, fittings, valves, seals, and reservoir connections. The machine frame and wedge must also withstand the resulting mechanical load.
If pressure is increased beyond the designed limit, possible consequences include:
Hose failure
Seal leakage
Pump damage
Cylinder damage
Valve failure
Frame deformation
Excessive heat
Increased safety risk
The system relief valve normally limits maximum pressure. When the wedge encounters a log that requires more force than the machine can produce, pressure rises until the relief valve opens and redirects oil rather than allowing pressure to increase indefinitely.
Users should therefore never raise the relief-valve setting simply to obtain more splitting force unless the entire hydraulic system has been designed and approved for that pressure.
Rated splitting tonnage should come from a matched hydraulic and structural design.
Log splitter tonnage represents the approximate maximum force the machine can apply through its splitting mechanism under specified operating conditions.

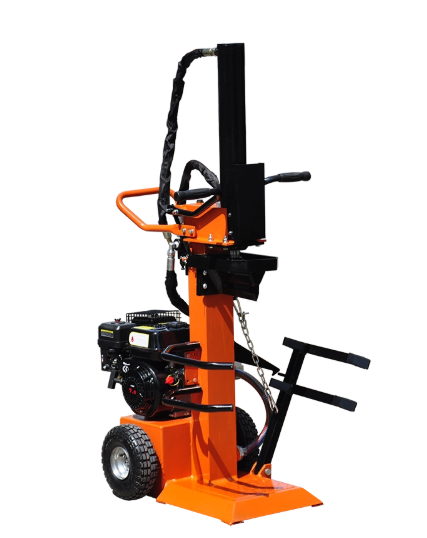

QHM's Hydraulic Driven Log Splitter for Big Logs, model VLS02G-65T15, is rated for a maximum splitting force of 15 tons. It is designed for logs up to 650 mm long and 400 mm in diameter.
For more demanding work, QHM also offers the Log Splitter BLS04G-105T35, which has a listed maximum splitting force of 35 tons and accommodates logs up to 1050 mm long and 500 mm in diameter.
These ratings show that splitter selection depends on the expected workload. A user preparing moderate household firewood may not need the same force as a landscaping contractor or wood-processing operation handling large, knotty hardwood rounds.
More tonnage can provide additional force reserve, but it usually means a larger hydraulic system, heavier structure, and potentially higher purchase and operating costs.
Pressure and flow perform different jobs in a hydraulic log splitter.
Pressure mainly determines available force.
Flow mainly determines actuator speed.
Hydraulic pump flow is normally expressed in liters per minute or gallons per minute. Higher flow sends more oil into the cylinder during a given period, so the piston moves faster.
If a splitter has adequate pressure but low flow, it may still generate strong splitting force, but the ram can move slowly.
If it has high flow but cannot develop enough pressure, the ram may move quickly until it reaches a difficult log, then stop because the system cannot generate sufficient force.
This relationship can be summarized as:
Hydraulic Factor | Main Effect |
|---|---|
Higher Pressure | Greater potential splitting force |
Larger Cylinder Bore | Greater force at the same pressure |
Higher Pump Flow | Faster ram travel |
Longer Cylinder Stroke | Allows longer logs but requires more oil |
Larger Rod Diameter | Changes retract-side area and strength |
Higher Engine Power | Supports required pressure and flow |
Relief Valve Setting | Limits maximum system pressure |
Good splitter design balances force and speed rather than maximizing only one.
Some hydraulic log splitters use a two-stage pump because wood splitting involves two very different operating conditions.
During most of the ram travel, the wedge is moving toward the log or returning after a split. Very little force is needed during these movements. High flow is more useful because it reduces cycle time.
Once the wedge contacts difficult wood, pressure begins to increase. At that point, the system needs greater force rather than maximum travel speed.
A two-stage pump can provide:
Low Pressure + High Flow during fast ram movement.
Then switch to:
High Pressure + Lower Flow when high splitting force is required.
This approach helps combine reasonable cycle speed with strong splitting force without requiring an unnecessarily large engine.
It also explains why a hydraulic splitter may slow noticeably when the wedge reaches a tough knot. The slower movement does not necessarily indicate a problem. It can mean the hydraulic system has shifted into its high-pressure working stage.
Engine horsepower matters, but it should not be confused with splitting tonnage.
The engine supplies mechanical power to the hydraulic pump. The pump must generate the required combination of pressure and flow.
Hydraulic power is related approximately to:
Pressure × Flow
Producing both very high pressure and very high flow requires more power. A smaller engine may support high pressure if flow is reduced, but it may not maintain high pressure and high flow simultaneously.
This is why a well-designed hydraulic log splitter does not simply install the largest possible pump.
Pump displacement, engine speed, hydraulic pressure, flow rate, cylinder size, and cycle requirements should all be matched.
An oversized pump can overload an engine. An undersized pump can make the machine unnecessarily slow.
For buyers, engine horsepower is therefore only one part of the specification.
Hydraulic force is generated by the cylinder, but the wedge determines how that force enters the wood.
A narrow, sharp wedge concentrates force into a relatively small contact area. This helps initiate a crack along the wood grain.
Once the crack begins, the widening sides of the wedge force the two sections farther apart.
Wedge geometry influences:
Initial penetration
Required hydraulic force
Splitting speed
Wood displacement
Performance on knotty logs
Stress on the machine frame
A badly worn or damaged wedge can require greater force to achieve the same split because it no longer penetrates efficiently.
This means poor splitting performance should not always be blamed on low hydraulic pressure.
Before adjusting the hydraulic system, operators should inspect the wedge and log positioning.
A hydraulic splitter does not require the same force for every log.
Wood species is one factor. Dense hardwoods can generally require more force than many softwoods, but species alone does not determine splitting difficulty.
Grain structure is often equally important.
Straight-grained wood can separate relatively easily along natural grain lines. Knotty, twisted, forked, or irregular grain resists crack propagation and can require considerably more force.
Splitting difficulty is affected by:
Wood species
Log diameter
Grain direction
Number of knots
Branch junctions
Moisture content
Log shape
Existing cracks
Wedge position
A smaller straight-grained hardwood log can sometimes split more easily than a larger irregular softwood round containing several branch knots.
This is why rated log diameter should be treated as a practical capacity guide rather than a guarantee that every piece of that diameter will require the same force.
Larger diameter generally increases splitting difficulty because there is more wood resisting separation and a greater chance of knots or irregular grain.
However, diameter does not have a simple one-to-one relationship with required tonnage.
A 400 mm straight-grained log may split relatively easily, while a smaller knotty round can stop a lower-powered splitter.
Large logs also create additional handling requirements. The machine frame, beam, wedge height, support table, and working orientation must accommodate the physical size and weight of the wood.
For users handling larger pieces regularly, greater splitting-force reserve is normally useful because it prevents the machine from operating continuously near maximum hydraulic pressure.
A larger QHM Forestry Machinery configuration may therefore be more appropriate for repetitive heavy-duty processing than selecting equipment only for the easiest logs in the pile.
When the wedge contacts resistance, the cylinder slows and hydraulic pressure rises.
If the wood begins to fracture before maximum system pressure is reached, the ram continues moving and completes the split.
If resistance continues increasing, the system eventually reaches its pressure limit. The relief valve then prevents excessive pressure buildup.
At that point, the operator may need to:
Retract the ram
Rotate the log
Change wedge position
Split from the opposite end
Start closer to an existing crack
Reduce the size of the section being split
Repeatedly holding the valve against full relief produces heat and places unnecessary load on the hydraulic system.
A hydraulic splitter should therefore be used as a controlled wood-processing machine rather than forcing every difficult piece through the same orientation.
If a splitter that previously worked well begins struggling with ordinary logs, the problem may not be the original tonnage rating.
Several hydraulic faults can reduce effective force.
Low hydraulic oil level can allow air into the system. Contaminated or incorrect oil can affect pump operation and valve performance. Internal cylinder seal leakage can allow oil to bypass the piston rather than producing full force.
Other possible causes include:
Worn hydraulic pump
Relief valve opening too early
Damaged cylinder seals
External hose leaks
Blocked hydraulic filter
Air in the system
Overheated hydraulic oil
Incorrect oil viscosity
Damaged control valve
Engine not reaching normal speed
A dull or damaged wedge can produce similar symptoms even when hydraulic pressure is normal.
Troubleshooting should therefore check both the hydraulic circuit and mechanical splitting components.
Hydraulic oil must operate within an appropriate viscosity range.
When oil is very cold, it becomes thicker. This increases resistance to flow and can make the ram move slowly until the system warms.
When oil becomes excessively hot, viscosity falls. Thin oil can increase internal leakage through pumps, valves, or worn seals and reduce effective system performance.
High temperature can also accelerate oil degradation and damage sealing materials.
Excessive heating may result from:
Holding the system at relief pressure for too long
Low oil level
Contaminated oil
Restricted filters
Incorrect oil viscosity
Pump wear
Poor cooling
Continuous heavy-duty operation
Operators should use the hydraulic-fluid grade specified for the machine and follow the maintenance schedule rather than changing viscosity based only on intuition.
An Electric Log Splitter can also use a hydraulic cylinder. “Electric” describes the power source driving the pump, while “hydraulic” describes the force-transmission system.
This distinction matters.
A gasoline hydraulic splitter uses a combustion engine to drive its hydraulic pump. An electric hydraulic splitter uses an electric motor to drive the pump. Both can use hydraulic pressure to move a cylinder.
Electric models are often suitable for homes, workshops, garages, or locations with convenient electrical power. They are generally quieter and avoid gasoline-engine maintenance.
Gas-powered hydraulic machines provide greater independence from electrical outlets and can be practical for farms, woodlots, rural properties, and remote work areas.
The correct choice therefore depends not only on splitting force but also on working location, log volume, available electricity, maintenance requirements, and portability.
There is no single tonnage suitable for every user.
A moderate-force splitter can be sufficient for straight-grained household firewood, while larger knotty hardwood logs can justify substantially more force.
Consider:
Work Condition | Selection Priority |
|---|---|
Small Straight Logs | Compact machine and cycle speed |
Routine Household Firewood | Balanced force and usability |
Medium Hardwood Logs | Greater force reserve |
Knotty Wood | Higher force and strong wedge |
Large Diameter Logs | Higher tonnage and strong frame |
Long Logs | Adequate cylinder stroke |
Frequent Commercial Work | Force, cycle time, durability |
Remote Woodlot | Gas-powered portability |
Workshop Use | Electric operation may be convenient |
The goal is not to buy the highest tonnage available. The goal is to have enough reserve to handle most of the expected wood without constantly operating at the pressure limit.
Tonnage is important, but it does not describe the entire machine.
Before selecting a hydraulic splitter, compare:
Maximum splitting force
Maximum log length
Maximum log diameter
Cylinder size
Cycle time
Engine or motor power
Horizontal or vertical operation
Wedge design
Frame construction
Hydraulic pump design
Reservoir capacity
Hose and fitting quality
Transport wheels
Operator controls
Spare-parts availability
Cycle time is particularly important for users processing large volumes.
A machine with extremely high tonnage but a very slow cycle may produce less firewood per hour than a correctly sized splitter with adequate force and faster travel.
Likewise, maximum log length matters if the wood is cut for large boilers or fireplaces.
Selection should therefore focus on the entire workflow rather than one headline number.
A hydraulic system can only maintain its designed performance when oil, filters, hoses, valves, pumps, and seals remain in good condition.
Operators should regularly inspect the hydraulic oil level and look for leakage around hoses, fittings, cylinder seals, and valve connections.
Hydraulic hoses should be replaced if they show cracking, abrasion, bulging, or damaged fittings. High-pressure oil escaping through a small leak can penetrate skin, so leaks should never be checked with bare hands.
The splitting wedge should also remain in suitable condition. Dirt and wood debris should be removed from the beam so that the ram can travel freely.
Routine maintenance should include:
Check hydraulic oil
Inspect hoses and fittings
Inspect cylinder seals
Maintain engine or electric motor
Clean or replace hydraulic filters where applicable
Keep the beam clean
Inspect the wedge
Check fasteners
Inspect wheels and frame
Follow the machine manual
Correct maintenance protects both splitting performance and operator safety.
QHM supplies outdoor power and Forestry Machinery for different residential, agricultural, landscaping, and wood-processing applications. Its product range includes log splitters with different power sources, splitting orientations, log capacities, and rated forces.
For users selecting a Hydraulic Log Splitter, the important step is matching machine capacity to the wood rather than automatically choosing the largest model. Log species, average diameter, maximum length, knot frequency, daily processing volume, working location, and desired cycle time all influence the correct configuration.
QHM's current hydraulic splitter range includes machines designed around different force levels. A 15-ton model can suit moderate firewood processing and longer logs, while heavier configurations provide additional force reserve for larger or more difficult material.

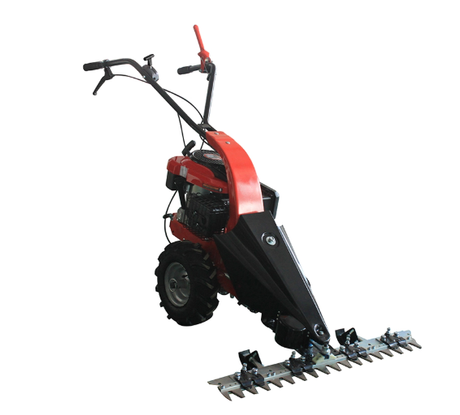

QHM also supplies other outdoor equipment such as Flail Mower, Sickle Bar Mower, Spreader, and Electric Log Splitter configurations for different land, garden, and forestry tasks. For distributors or equipment buyers, model selection can be matched to the intended market, user group, operating environment, and required workload.
Hydraulic pressure drives log splitting force by acting against the piston inside a hydraulic cylinder. The fundamental relationship is:
Splitting Force = Hydraulic Pressure × Effective Piston Area
This means pressure is important, but pressure alone does not determine splitter performance. Cylinder bore, pump flow, engine power, relief-valve setting, wedge geometry, system efficiency, and wood characteristics all contribute to the final result.
Pressure and flow should also not be confused. Pressure provides the potential force, while flow largely determines ram speed. A properly designed hydraulic splitter balances both so the machine can approach the log quickly, develop sufficient force when resistance increases, and return efficiently after the split.
For buyers, rated tonnage should be evaluated together with maximum log length, diameter, cycle time, machine orientation, frame strength, power source, and expected workload. A correctly sized QHM hydraulic log splitter provides enough force reserve for the intended wood without unnecessarily increasing machine size or operating cost.
Hydraulic oil is pumped into a cylinder under pressure. The pressure acts against the piston and creates linear force that pushes the ram or wedge into the wood until the grain separates.
The primary theoretical factors are hydraulic pressure and piston area. Actual performance is also affected by hydraulic losses, relief-valve settings, wedge design, cylinder condition, and log characteristics.
Not necessarily. Splitting force depends on both pressure and cylinder piston area. A larger cylinder at lower pressure can potentially produce more force than a small cylinder at higher pressure.
Yes, if operating pressure remains the same. A larger cylinder bore provides greater piston area, so hydraulic pressure produces more linear force.
Not automatically. A higher-flow pump mainly increases cylinder speed. Maximum force depends primarily on system pressure and effective piston area.
Some hydraulic systems reduce flow as pressure increases so more available power can be used to produce force. The machine may therefore move more slowly when the wedge encounters heavy resistance.
The log may require more force than the machine can deliver in that position. Once maximum system pressure is reached, the relief valve prevents pressure from continuing to rise.
Hydraulic pressure should not be increased beyond the manufacturer's specification. Pumps, cylinders, valves, hoses, seals, and the machine frame all have design limits.
There is no universal figure because difficulty depends on species, diameter, moisture, knots, grain orientation, and log shape. Larger and more irregular hardwood usually requires greater force reserve.
A 15-ton splitter can be suitable for many household, farm, and moderate firewood applications. Suitability depends on average log diameter, grain structure, wood species, and workload.
Pressure provides the force potential needed to overcome wood resistance. Flow determines how quickly oil fills the cylinder and therefore strongly affects ram travel speed.
Yes. Many electric log splitters use an electric motor to drive a hydraulic pump. “Electric” describes the power source, while “hydraulic” describes the system that produces the splitting movement.
Oil viscosity affects flow, lubrication, leakage, and pump efficiency. Extremely cold, overheated, contaminated, or incorrect oil can reduce hydraulic performance and increase component wear.
Compare splitting force, maximum log dimensions, cycle time, power source, cylinder and pump design, working orientation, wedge design, frame strength, portability, controls, maintenance requirements, and spare-parts support.
