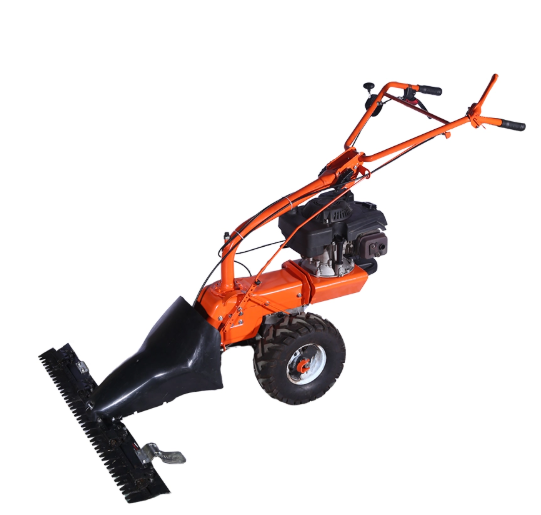

A sickle bar mower cuts meadow grass with a long reciprocating blade that moves rapidly from side to side across stationary guards. As grass stems enter the cutting bar, the moving knife sections and fixed guards create a scissor-like action that slices stems close to the ground instead of shredding them with a high-speed rotary blade.
This cutting method makes a Sickle Bar Mower especially suitable for tall meadow grass, hay, weeds, and vegetation that should remain relatively intact after cutting. Compared with equipment that chops vegetation into small pieces, a sickle bar mower can leave longer cut material lying in a swath, which can be useful when grass will later be collected, dried, or used as forage.
QHM offers several models through its Sickle Bar Mower range, with different cutting widths and power configurations for meadows, larger plots, orchard areas, and general grass management.

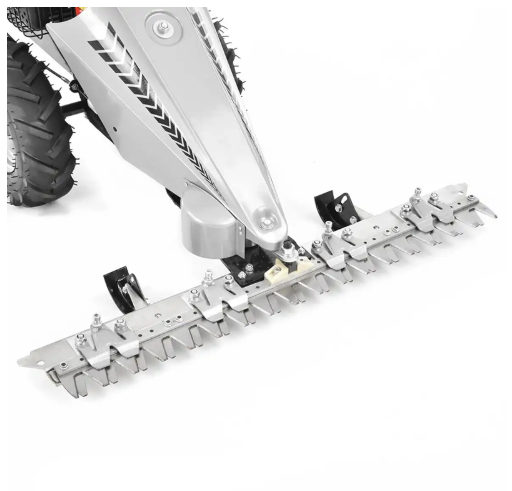

The cutting system is based on two components working against each other: moving knife sections and stationary guards or cutting surfaces. The knife bar moves rapidly in a horizontal reciprocating motion. When a grass stem enters the gap between a moving knife section and a fixed guard, it is trapped and sheared.
The action is similar to a long row of scissors operating repeatedly across the full width of the machine. Because cutting is produced mainly by shearing rather than high blade-tip speed, the mower does not need to pulverize the vegetation to cut effectively.
This creates several practical characteristics:
Tall grass can be cut near its base.
Cut stems remain relatively long.
Power demand can be lower than some heavy rotary mowing systems.
There is less need to repeatedly strike the same material.
The cutting bar can work through vegetation that would simply bend beneath some lawn-type mowers.
The effectiveness of the system depends heavily on blade sharpness and correct contact between the knife sections and guards. If the blades become dull or the clearances become excessive, stems may bend or tear instead of being cut cleanly.
For operators managing meadows rather than manicured lawns, this shearing action is one of the main reasons a sickle bar design remains useful.
Tall meadow vegetation behaves differently from short lawn grass. Mature grass stems are longer, tougher, and often mixed with weeds or seasonal growth. A mower designed primarily for short lawns may struggle because large volumes of vegetation accumulate beneath the deck.
A sickle bar mower approaches the vegetation from the front. The cutting bar meets the standing stems before the wheels and main machine body pass over them. The stems enter the guards and are cut close to the base, after which they fall behind or beside the cutting area.
This open cutting arrangement gives the vegetation more room to leave the cutter bar. There is no enclosed mowing deck that must continuously process and discharge the full grass volume.
The result is particularly useful for:
Meadows
Hay fields
Rough grass
Seasonal grass growth
Orchard groundcover
Field boundaries
Large rural plots
Areas mowed only a few times per year
A sickle bar mower is therefore often more suitable for periodically maintained grassland than a conventional lawn mower designed to cut a small amount from the top of short turf every week.
One important difference between a sickle mower and a Flail Mower is what happens to the vegetation after the blade reaches it.
A flail mower uses many rotating flails to strike and repeatedly chop vegetation. This is effective when the objective is to reduce tall grass, weeds, and light brush into smaller material that remains on the ground as mulch.
A sickle bar mower usually cuts the stem once near its base. Much of the vegetation therefore remains in relatively long sections and falls onto the meadow.
This can be preferable when the operator wants to:
Dry grass for hay
Collect cut vegetation
Maintain meadow habitat
Avoid excessive shredding
Reduce repeated processing of the material
Leave a cleaner swath for later handling
Neither cutting method is universally better. A flail mower is usually more suitable when vegetation needs to be chopped and spread. A sickle bar mower is more appropriate when the goal is primarily to cut standing grass efficiently while keeping the cut material comparatively intact.
Cutting height determines how much vegetation remains after mowing and how close the knife bar operates to the soil surface.
For example, the Sickle Bar Mower SM0870 has an 870 mm cutting width and an adjustable cutting height of 30–80 mm. This range allows the operator to adapt the machine to different vegetation and ground conditions.
A lower cutting height can leave a shorter field, but it also puts the cutting bar closer to stones, soil, roots, and uneven ground. On rough meadows, cutting slightly higher can reduce the risk of knife and guard contact with hidden obstacles.
Higher cutting settings may also be useful when:
Ground is uneven.
Stones are common.
Meadow plants should retain some basal growth.
Grass is being managed rather than completely cleared.
Soil conditions are soft.
The operator wants to reduce cutter-bar wear.
The lowest possible cut is not always the most productive setting. In rough ground, excessive contact with soil can quickly dull the knife sections and increase maintenance.
Operators should therefore set cutting height according to the field surface as well as the desired grass height.
A sickle bar mower needs time for vegetation to enter the guards and for the reciprocating knives to complete the shearing action. If the machine travels too quickly through very dense grass, more material enters the cutting bar than it can process cleanly.
This can produce uncut strips, partially cut stems, or material accumulating around the guards.
The correct travel speed depends on:
Grass height
Stem density
Moisture
Weed content
Ground roughness
Blade sharpness
Cutting width
Engine output
In light, upright grass, the machine can generally travel faster. Dense, lodged, or wet meadow vegetation usually requires slower movement.
The Sickle Bar Mower SM0970, for example, uses a 970 mm cutting width with 159 cc or 196 cc engine options. A wider cutting bar can increase coverage per pass, but actual field productivity still depends on choosing a travel speed that allows the cutter to shear the vegetation cleanly.
Mowing faster is therefore useful only until cutting quality begins to decline. Beyond that point, operators may spend more time returning to missed grass or clearing the cutter bar.
Sharp knife sections reduce the force required to sever each stem. They also make a cleaner cut and reduce the tendency of vegetation to pull, bend, or become trapped between the moving and stationary components.
Dull sections create several symptoms:
Ragged grass ends
Increased clogging
More vibration
Higher mechanical load
Missed stems
Reduced operating speed
Uneven cutting
Blade condition becomes especially important in mature meadow grass because stems can be fibrous and tough.
Operators should periodically stop the machine safely and inspect the knife sections, guards, fasteners, and alignment. Damaged or badly worn cutting components should be repaired or replaced rather than compensated for by increasing engine speed or forcing the mower forward.
The cutting surfaces must also remain properly aligned. A sharp knife section cannot cut effectively if the gap to the opposing surface becomes too large.
Good cutting performance therefore depends on the complete cutter-bar condition, not simply engine horsepower.
It can cut damp or moderately wet grass, but very wet vegetation can reduce operating efficiency.
Wet stems tend to stick together. Cut material can build up around guards instead of separating cleanly from the knife bar. Lodged grass can also lie close to the ground and enter the cutting system at an unfavorable angle.
When mowing wet meadow grass:
Reduce forward speed.
Keep the cutting bar clean.
Inspect for material buildup more frequently.
Make sure the knife sections are sharp.
Avoid forcing the mower through blocked vegetation.
Increase cutting height when ground conditions require it.
If the meadow is saturated, delaying mowing may also protect the ground. Heavy wheel traffic on soft soil can produce ruts and make future passes more difficult.
Dry or slightly moist standing vegetation normally produces more consistent cutting than heavily wet and flattened grass.
Lodged grass has been flattened by wind, rain, animals, or its own weight. It is harder to cut because the stems may lie parallel to the ground instead of entering the cutter bar vertically.
The operator's travel direction becomes important. Approaching lodged vegetation from the direction that lifts or presents more stems toward the guards can improve cutting.
A slightly lower travel speed also gives the knife more time to separate overlapping stems.
However, extremely flat and tangled material can challenge any sickle cutter. In these conditions, some areas may require a second pass from a different direction.
The mower should not be forced aggressively into a dense mat because this can increase plugging rather than improve productivity.
A clean, sharp cutting bar and proper ground clearance generally provide better results than simply increasing machine speed.
Sickle bar mowers perform particularly well where vegetation consists primarily of grasses and herbaceous plants rather than dense woody brush.
Suitable conditions include:
Meadow Condition | Sickle Bar Mower Suitability |
|---|---|
Tall grass | Very suitable |
Hay-type vegetation | Very suitable |
Seasonal meadow growth | Very suitable |
Dense grass | Suitable with lower travel speed |
Light weeds | Suitable |
Orchard grass | Suitable |
Uneven meadow | Suitable with correct cutting height |
Wet tangled grass | Possible but slower |
Thick woody brush | Generally not ideal |
Large rocks/stumps | Requires caution |
The machine is designed to cut stems, not pulverize branches or strike hard obstacles.
If the field contains heavy brush, saplings, thick woody stems, or hidden debris, another mower type may be more appropriate.
This is one of the main differences between a sickle bar mower and a heavy-duty flail system. The sickle cutter is optimized for efficient shearing; it should not be treated as a brush crusher.
Yes, but field inspection and cutting-height adjustment are important.
Meadows rarely have perfectly level surfaces. Small dips, slopes, molehills, stones, roots, and drainage channels can all affect the cutting bar.
A mower with adjustable cutting height gives the operator more flexibility. Raising the bar slightly on rough terrain reduces soil contact and gives the knife sections more clearance above hidden obstacles.
Operators should inspect unfamiliar fields before mowing and remove obvious hazards where practical.
Particular attention should be given to:
Large stones
Wire
Tree branches
Metal objects
Posts
Stumps
Irrigation components
Deep holes
The reciprocating knife can tolerate normal grass-cutting loads, but striking a solid object can damage knife sections, guards, fasteners, or drive components.
Maintaining control at a reasonable walking or operating speed is more important than maximizing theoretical field capacity.
A wider cutting bar covers more ground with every pass, but width should match meadow size, access, terrain, and operator requirements.
QHM's current sickle bar mower range illustrates several choices. The SM0870 provides an 870 mm working width, while the SM0970 increases coverage to 970 mm. Larger configurations extend the width further.
For relatively narrow orchard lanes, small meadow areas, or locations requiring frequent turns, a narrower cutting bar can make the machine easier to position.
For large open plots, greater width reduces the number of passes and can improve hourly productivity.
The Sickle Bar Mower SMA1100 uses a 1100 mm cutting width and a 196 cc four-stroke engine rated at 4.0 kW at 3600 rpm. It also provides multiple forward and reverse gear positions, giving the operator additional control over travel speed for changing vegetation density and field conditions.
This demonstrates why width should not be considered alone. Transmission control, engine power, terrain, and operator maneuverability all influence how productive a wider mower will actually be.
Both machines can maintain meadow vegetation, but they leave very different results.
Factor | Sickle Bar Mower | Flail Mower |
|---|---|---|
Cutting Method | Reciprocating shear | Rotating flails |
Grass Condition After Cut | Long stems | Chopped material |
Tall Meadow Grass | Very suitable | Very suitable |
Hay Collection | Better suited | Less suitable |
Mulching | Limited | Very good |
Light Brush | Limited | Generally stronger |
Power Demand | Often moderate | Usually higher |
Hidden Obstacles | Sensitive cutting bar | Flails may tolerate some impacts better |
Cut Style | Clean stem cut | Shredded/chopped |
Debris Distribution | Leaves swath/material | Spreads chopped vegetation |
Choose the sickle bar design when the main objective is to cut standing grasses efficiently and retain longer material.
Choose a flail mower when the main objective is vegetation reduction, mulching, or handling rough mixed growth.
Some landowners can benefit from both. A sickle bar mower can handle seasonal meadow cutting, while a flail mower can be used for rougher areas where the vegetation needs to be chopped.
Clogging usually occurs when grass collects between the knife sections and guards faster than the cutter can clear it.
Several operating practices help reduce this problem.
First, maintain sharp blades and correctly aligned guards. Mechanical condition has a direct effect on how easily material leaves the cutter.
Second, reduce travel speed in dense or wet vegetation. Feeding less material into the cutter at one time often improves overall productivity because the operator spends less time stopping to remove blockages.
Third, approach lodged grass from a more favorable direction. Cutting across or against the direction of lodging can sometimes help stems enter the guards more effectively.
Fourth, do not lower the bar unnecessarily close to the soil. Dirt, dead vegetation, and surface debris can enter the cutter and combine with fresh grass to create plugging.
If the bar becomes blocked, shut the drive and engine down according to the machine's safety procedure before removing material. Never clear the knife area while the cutter can move.
The cutter bar deserves most of the routine attention because its mechanical condition directly controls cutting quality.
Before and after meadow work, inspect:
Knife sections
Guards
Blade alignment
Fasteners
Reciprocating drive components
Lubrication points
Belt or transmission components
Wheels and tires
Engine oil
Air filter
Fuel system
Grass and plant material should be removed after mowing, particularly around the cutting mechanism.
Knife sections should be sharpened or replaced when they no longer produce a clean cut. Bent guards should be corrected or replaced because poor alignment increases clogging and wear.
For gasoline-powered models, engine maintenance should follow the specified service schedule. A clean air filter becomes particularly important during dry summer mowing because dust, seeds, and grass particles can accumulate rapidly.
Proper off-season storage also helps protect the cutter bar from corrosion.
Start with the type and size of meadow rather than engine displacement alone.
For smaller plots or areas with restricted access, a compact cutting width can improve maneuverability. For larger open meadows, additional width reduces the number of passes.
Then evaluate vegetation. Light annual grass requires less cutting capacity than dense mature meadow growth. If the land contains substantial woody brush rather than grass, a sickle bar mower may not be the appropriate machine.
Important selection factors include:
Meadow area
Typical grass height
Vegetation density
Ground slope
Surface roughness
Cutting width
Adjustable cutting height
Engine output
Travel gears
Operator comfort
Replacement knife availability
Maintenance access
The mower should also match how the cut material will be managed. If vegetation will be dried or collected, maintaining relatively long stems is an advantage. If the goal is to finely mulch everything in place, another cutting system may be more efficient.
QHM specializes in outdoor power equipment including mowers, tillers, spreaders, log splitters, wood chippers, and other garden and forestry machinery. Its sickle bar mower range provides several cutting widths so buyers can match the equipment to different plot sizes and operating conditions.
Models such as the SM0870, SM0970, SM1070, and SMA1100 are designed around gasoline-powered reciprocating cutting systems for meadow and large-plot mowing. Depending on the model, buyers can choose different cutting widths, engine configurations, and transmission arrangements.
For distributors, equipment dealers, agricultural suppliers, and other B2B buyers, model selection should be based on the target customer's actual mowing environment. Meadow size, vegetation density, preferred working width, terrain, engine requirements, and expected operating frequency should all be considered before selecting a configuration.
QHM also supports OEM and ODM requirements for its outdoor power equipment range, allowing product configuration discussions to consider specific market and distribution needs.
A Sickle Bar Mower cuts meadow grass by moving a row of sharp knife sections rapidly back and forth against fixed guards. Each grass stem is captured and sheared in a scissor-like action near its base.
This mechanism makes the mower particularly effective for tall meadow grass, hay-type vegetation, seasonal field growth, orchard grass, and large plots that are not maintained like short lawns. Because the mower cuts rather than repeatedly chops vegetation, the material normally remains relatively long after mowing.
Good performance depends on more than engine power. Blade sharpness, guard alignment, travel speed, cutting height, grass moisture, vegetation density, and ground condition all affect the result. Wider machines can improve productivity in open meadows, while compact cutting widths can provide better maneuverability in smaller or restricted areas.
A sickle bar mower is therefore most effective when the goal is clean, efficient cutting of standing grass. For heavy brush or applications where vegetation must be shredded and mulched, a Flail Mower may be more suitable.
QHM provides several sickle bar mower configurations for different meadow and field requirements. Buyers should compare working width, cutting height, engine output, gearing, vegetation type, terrain, and intended cutting frequency before selecting the most suitable model.
A reciprocating knife bar moves rapidly from side to side against stationary guards. Grass stems entering the guards are sheared between the moving and fixed cutting surfaces.
Yes. It is particularly useful for tall standing grass because the open cutter bar slices stems near the base without requiring the material to circulate inside a mower deck.
Yes. Its clean shearing action leaves relatively long cut stems, making the design suitable where grass will later be dried, gathered, or used as hay.
It depends on the goal. A sickle bar mower is better when clean cutting and long cut material are preferred. A flail mower is generally better when vegetation needs to be chopped and mulched.
It can cut many herbaceous weeds along with grass. Thick woody brush and saplings are generally outside the ideal application of a standard sickle bar mower.
Yes, but the cutting height should provide adequate clearance, and the field should be checked for stones, stumps, wire, and other obstacles that could damage the cutter bar.
Common causes include dull knives, damaged or misaligned guards, very wet vegetation, dense lodged grass, excessive forward speed, and cutting too close to debris on the ground.
The correct height depends on vegetation and terrain. A higher setting can provide more clearance on rough ground, while lower settings provide a shorter finished cut on smoother fields.
A wider cutting bar can cover more area per pass, but productivity also depends on vegetation density, forward speed, engine power, terrain, and maneuverability.
Regularly inspect the knife sections, guards, blade alignment, fasteners, drive mechanism, lubrication points, engine oil, and air filter. Keeping the cutter sharp and aligned is especially important for clean cutting.
It can, but very wet grass is more likely to stick together and clog the cutter. Slower forward speed and a clean, sharp cutting bar generally improve performance.
Choose according to meadow area, access width, vegetation density, terrain, required productivity, and maneuverability. Wider models are useful for open fields, while narrower machines can be easier to handle in confined areas.
