Correct spreader settings are essential for applying lawn fertilizer evenly. If the opening is too large, too much fertilizer can reach the turf and increase the risk of excessive growth or fertilizer burn. If the opening is too small, nutrient application may be insufficient and the lawn can develop uneven color or weak growth. The correct setting also depends on fertilizer granule size, product density, walking or towing speed, effective spread width, and the mechanical condition of the spreader.
This is why a number printed on a spreader dial should be treated as a starting point rather than a universal fertilizer rate. Even two similar spreaders can deliver slightly different amounts of material. QHM supplies different Spreader configurations for lawn care, landscaping, agricultural applications, seed distribution, and seasonal material spreading. Accurate application begins by matching the machine, fertilizer, area, and operator speed, then confirming the result through calibration.
On most lawn fertilizer spreaders, the setting controls how far the metering opening beneath the hopper opens. A larger opening allows more fertilizer granules to fall onto the spinner or distribution mechanism, while a smaller opening reduces material flow.
However, the setting does not directly mean a fixed amount such as “3 kg per 100 m².” A dial position of 5 on one spreader may deliver a very different rate from setting 5 on another. Fertilizer characteristics also influence how quickly material passes through the opening.
The actual application rate depends on several variables working together:
Factor | Effect on Fertilizer Application |
|---|---|
Hopper Opening | Controls material flow |
Fertilizer Granule Size | Larger or smaller particles flow differently |
Granule Density | Changes weight delivered at the same volume |
Walking/Towing Speed | Faster travel usually reduces application per unit area |
Spread Width | Changes the total area covered |
Wheel Speed | Can affect spinner or metering speed |
Material Moisture | Damp fertilizer may bridge or flow unevenly |
Ground Conditions | Slippage can change wheel-driven spreaders |
Equipment Wear | Changes metering accuracy over time |
The correct spreader setting therefore cannot be determined by the fertilizer name alone.
Before changing the spreader, determine how much fertilizer should actually be applied.
Fertilizer labels typically provide an application rate based on area. Depending on the market, this may be expressed as pounds per 1,000 square feet, kilograms per 100 square meters, or another area-based rate.
That target rate should be established before selecting a spreader setting.
For example, if a fertilizer label states that a certain weight should cover 500 m², the operator can calculate the required amount for the actual lawn area. The spreader is then calibrated to deliver that quantity evenly.
The basic calculation is:
Required Fertilizer = Lawn Area × Recommended Application Rate
When fertilizer recommendations are expressed through nutrient content rather than total product weight, the percentage of nutrients in the fertilizer must also be considered. Do not assume two fertilizers with different N-P-K analyses should be applied at the same weight.
The fertilizer manufacturer's label and applicable local turf-management recommendations should take priority over a generic spreader chart.
Many fertilizer packages include suggested settings for popular spreader models. These tables are useful, but they should not be treated as exact calibration values.
Two factors explain why.
First, fertilizer products differ physically. A fine granular fertilizer flows differently from a coarse pelletized product. Granule density, shape, moisture content, coating, and particle-size distribution all influence how much material falls through the same opening.
Second, operators travel at different speeds. A walk-behind spreader pushed slowly spends more time over each square meter of lawn, so more fertilizer can be released over that area. The same spreader pushed faster generally applies less fertilizer per square meter.
This means the relationship is approximately:
Higher Flow + Slower Speed = Higher Application Rate
Lower Flow + Faster Speed = Lower Application Rate
For a wheel-driven broadcast spreader, travel speed may also influence spinner speed and throwing distance. Maintaining a steady pace becomes particularly important.
For these reasons, calibration should be performed whenever the fertilizer product, spreader, or normal operating speed changes.
The most reliable method is to measure a known test area and determine how much fertilizer the spreader actually releases.
Start by checking the fertilizer label and selecting the target application rate. Then measure a test strip with a known length and determine the spreader's effective working width. The test area is:
Test Area = Effective Spread Width × Test Distance
Next, place a known weight of fertilizer in the hopper. Choose the manufacturer's recommended dial position if one is available, or begin with a conservative setting. Start moving before opening the hopper gate so fertilizer does not accumulate heavily at the starting point.
Travel across the test strip at the same speed that will be used on the lawn. Close the outlet before stopping.
After completing the test, weigh the fertilizer remaining in the hopper.
Fertilizer Applied = Starting Weight − Remaining Weight
Compare that number with the amount that should have been applied over the test area.
If too little fertilizer was released, increase the setting slightly. If too much was released, reduce the opening. Repeat the test until the actual output is reasonably close to the target rate.
This calibration method is more reliable than copying a setting from another operator because it accounts for the actual spreader, material, and operating speed.
Suppose a fertilizer product should be applied at 2.5 kg per 100 m².
The spreader's effective working width is 3 m, and the test route is 20 m long.
The test area is:
3 m × 20 m = 60 m²
The required fertilizer for that area is:
2.5 kg × 60 ÷ 100 = 1.5 kg
The spreader should therefore release approximately 1.5 kg during the test pass.
If it releases only 1.1 kg, the outlet setting needs to be increased. If it releases 1.9 kg, the opening needs to be reduced.
This type of calculation provides a much more dependable setting than simply choosing a number from the dial.

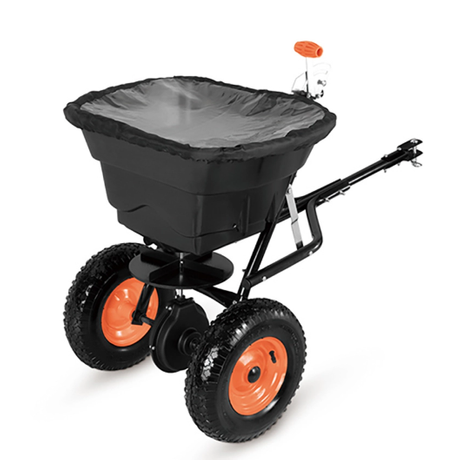

For larger commercial lawns, a tow-behind model such as the Adjustable Spreader for Lawn Care TBS0360 can cover wider areas efficiently. QHM lists this model with a 36 kg / 29 L hopper and an approximate spread width of 3048–3658 mm. The same calibration principle still applies because actual fertilizer output varies with material and towing speed.
Speed is one of the most common causes of inaccurate fertilizer application.
With a walk-behind spreader, slowing down while the outlet remains open increases the amount of fertilizer deposited within a given area. Speeding up tends to reduce the amount.
The same issue applies to tow-behind models. The towing vehicle should maintain a stable operating speed during both calibration and actual lawn treatment.
For example, if calibration is performed while walking briskly but the operator later moves slowly around the lawn, the real application rate can exceed the calibrated rate.
Speed changes are especially common around:
Trees
Garden beds
Corners
Slopes
Gates
Lawn edges
Obstacles
The best operating method is to establish motion first, open the fertilizer gate at the beginning of the application zone, maintain a steady speed, then close the gate before slowing down or turning.

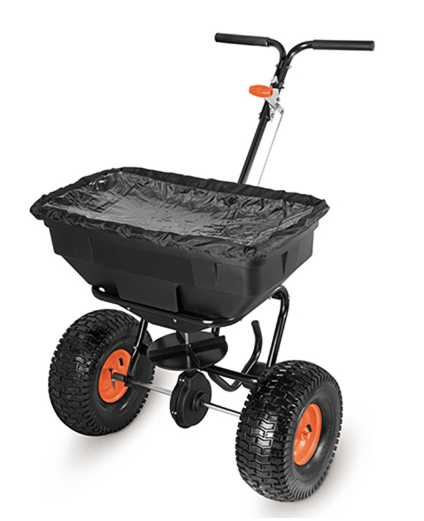

QHM's Walk Behind Spreader for Lawn Care WBS0560 is a hand-push model with a 56 kg / 60 L hopper and adjustable spreading width. Because it is mechanically driven as the operator pushes it, consistent walking speed is particularly important for repeatable fertilizer distribution.
Different fertilizers do not flow through a spreader in the same way.
Large, uniform granules usually flow differently from fine or irregular particles. A fertilizer containing a broad mixture of particle sizes can also produce uneven distribution because the spreader may throw heavier granules farther than lighter particles.
The same dial setting can therefore produce different application rates when changing products.
Several material properties matter:
Granule Size: Fine particles can pass through smaller openings more readily.
Bulk Density: A dense product can deliver more weight even when the volumetric flow appears similar.
Particle Shape: Round, smooth granules generally move more freely than irregular particles.
Moisture: Damp fertilizer may clump and bridge over the outlet.
Coating: Coated slow-release products can have different surface friction from conventional granular fertilizer.
Always recalibrate when switching fertilizer products, even when the nutrient analysis appears similar.
Avoid breaking fertilizer clumps inside the hopper during application because this can suddenly change flow. Material should be dry and free-flowing before filling the spreader.
Broadcast spreaders do not usually distribute equal amounts of fertilizer across the entire visible throwing distance. More granules often land near the center of the pattern while fewer reach the outer edges.
This means the effective spread width is usually narrower than the maximum distance reached by a few individual granules.
Adjacent passes need enough overlap for the lower-density edges of one spreading pattern to combine with the edge of the next pass.
If passes are too far apart, visible under-fertilized strips may develop. If the operator overlaps too heavily, darker bands can appear because those areas receive too much fertilizer.
The correct pass spacing should be determined from the actual distribution pattern of the machine and fertilizer rather than estimating from the farthest granule thrown.
QHM's larger spreaders list spreading widths of roughly 3.0–3.6 m for suitable materials, but the practical pass spacing during fertilizer application should still be confirmed through calibration and observation.
Marking reference lines during the first application can make consistent spacing easier, particularly on large open lawns.
For lawns where uniformity is especially important, applying fertilizer in two perpendicular passes can reduce the effect of minor skips and overlaps.
In this method, the first pass is made in one direction and the second at approximately 90 degrees to it.
The important point is that each pass should apply only part of the total target amount.
For a two-pass application:
Rate Per Pass = Total Target Rate ÷ 2
Applying the full fertilizer rate in both directions would double the intended application.
A cross-pattern approach can be useful for sports turf, ornamental lawns, golf-course areas, and other locations where visible striping is undesirable.
However, a correctly calibrated single-pass application can also produce uniform results. The best method depends on spreader design, operator consistency, lawn layout, and required precision.
Slopes create additional operating challenges because walking or towing speed is harder to maintain.
An operator may move more slowly uphill and faster downhill. With a fixed hopper opening, this changes fertilizer application per unit area.
Wheel slip can also affect ground-driven spreading mechanisms.
For moderate slopes, work across the slope when safe and practical rather than repeatedly changing speed while moving directly uphill and downhill. Maintain the same pace used during calibration as closely as possible.
Avoid spreading on slopes where equipment stability becomes uncertain.
For large properties that include uneven ground, selecting a spreader with suitable tire size, traction, and chassis stability is just as important as selecting the correct fertilizer setting.
The broader QHM Garden Tools range includes equipment intended for lawn, garden, orchard, and property-maintenance applications where terrain conditions can vary considerably.
Incorrect settings are only one cause of uneven fertilizer distribution.
Common causes include:
Problem | Likely Effect |
|---|---|
Changing Walking Speed | Uneven application rate |
Incorrect Pass Spacing | Light and dark stripes |
Damp Fertilizer | Interrupted flow |
Fertilizer Clumps | Outlet blockage |
Worn Metering Gate | Inaccurate application |
Damaged Spinner | Uneven throw pattern |
Low Tire Pressure | Different wheel rotation |
Wheel Slip | Irregular feed/spinner speed |
Wind | Distorted fertilizer pattern |
Turning With Gate Open | Heavy fertilizer deposits |
Uneven Hopper Loading | Potential flow changes |
Dirty Mechanism | Sticking or incomplete gate movement |
Wind deserves particular attention when applying lightweight materials. A rotary spreader distributes granules laterally, so strong wind can shift the pattern and make accurate overlap difficult.
Avoid fertilizer spreading immediately before conditions where runoff is likely, and sweep granules from driveways, sidewalks, or other hard surfaces according to local environmental requirements rather than washing them into drains.
Broadcast spreading becomes more difficult near flower beds, ponds, sidewalks, driveways, and property boundaries because the normal pattern extends beyond the spreader wheels.
The operator should use any available edge-control or directional-control feature when the spreader provides one. Otherwise, the route and outlet setting need to be managed carefully to keep fertilizer within the intended turf area.
Do not compensate by sharply increasing the setting near an edge.
A better method is to establish a controlled perimeter pass, then complete the interior using consistent parallel passes.
Close the outlet before:
Turning
Stopping
Crossing pavement
Refilling
Moving between lawn sections
Open it only after the spreader has returned to normal operating speed.
This reduces concentrated piles that can damage turf and makes the total applied amount easier to control.
The hopper should contain enough material to maintain reliable flow without making the equipment unnecessarily heavy or difficult to control.
For small lawns, filling a large hopper completely may not be necessary. Loading only the calculated quantity also makes it easier to notice whether the calibrated rate is correct.
For larger properties, hopper capacity becomes more important because fewer refilling stops improve productivity.
QHM spreaders include different capacities for different operating scales. Larger 56 kg / 60 L configurations can reduce refill frequency on substantial lawn, landscaping, or agricultural areas, while smaller units may be easier to maneuver around residential properties.
Regardless of capacity, keep the fertilizer reasonably level inside the hopper and avoid allowing the hopper to run almost empty while trying to complete a long pass. Very low material levels can sometimes produce irregular feeding.
Calibration should not be considered a one-time factory setting.
Repeat calibration when:
Changing fertilizer product
Changing granule size
Changing application rate
Changing operator
Changing normal walking or towing speed
Replacing wheels or drive components
Repairing the metering mechanism
Using the spreader after extended storage
Noticing lawn striping
Observing uneven fertilizer flow
Commercial lawn-care crews should also check multiple spreaders individually rather than assuming identical models deliver identical output.
Mechanical wear, tire condition, gate adjustment, and manufacturing tolerance can create small differences. Those differences become significant when fertilizer is applied across large areas.
Maintaining a simple calibration record with the fertilizer name, target rate, spreader model, setting, travel speed, and effective width can save time during repeated seasonal applications.
Fertilizer residue should not remain inside the spreader after use.
Many granular fertilizers attract moisture and can promote corrosion on exposed metal components. Residue can also harden around the gate, agitator, axle, or spinner and change the calibration during the next application.
After use, empty unused fertilizer according to the product-storage instructions. Remove remaining particles from the hopper and spreading mechanism, then clean the equipment following the manufacturer's instructions.
Pay particular attention to:
Hopper outlet
Metering gate
Spinner plate
Agitator
Axle
Wheel hubs
Gear mechanism
Hitch
Frame joints
Allow the equipment to dry before storage. Lubricate moving components where required, but keep lubricants away from surfaces where they could cause fertilizer granules to stick.
Correct maintenance helps the setting selected during calibration remain repeatable over time.
For small and medium lawns with trees, narrow passages, or frequent direction changes, a walk-behind spreader provides direct maneuverability and speed control.
For larger lawns, sports fields, estates, parks, or agricultural areas, a tow-behind spreader can improve productivity because it combines greater hopper capacity with wider coverage.
Before selecting a spreader, compare:
Lawn area
Hopper capacity
Spread width
Adjustable application rate
Fertilizer type
Tire size
Terrain
Frame corrosion resistance
Hopper material
Ease of calibration
Replacement parts
Tow-vehicle compatibility where applicable
A larger spreader does not automatically provide better accuracy. The most important feature is the ability to maintain repeatable material flow while the operator maintains consistent pass spacing and travel speed.
QHM manufactures outdoor power equipment and garden machinery for landscaping, forestry, property maintenance, and agricultural applications. Its product range includes spreaders together with equipment such as Flail Mower and Sickle Bar Mower models for vegetation management, as well as Electric Log Splitter and Hydraulic Log Splitter solutions for wood processing.
For lawn and landscape applications, QHM offers both walk-behind and tow-behind spreader configurations. Current models include different hopper capacities and wheel sizes to suit residential lawns, larger properties, commercial turf, agricultural plots, and seasonal salt or sand distribution.
When sourcing spreaders for distribution, landscaping fleets, or private-label programs, buyers should compare hopper capacity, working width, rate adjustment, tire configuration, frame construction, and material compatibility rather than purchasing only by hopper volume.
QHM also provides OEM and ODM options for buyers requiring specific product configurations, branding, or packaging.
Accurate lawn fertilization depends on calibration, not simply on choosing a number on the spreader dial.
The correct setting changes with fertilizer granule size, density, desired application rate, effective spread width, walking or towing speed, and equipment condition. Start with the fertilizer label, calculate the amount required for the lawn, calibrate the spreader over a measured area, then adjust the outlet until the actual fertilizer output matches the target rate.
During application, maintain consistent speed and pass spacing. Begin moving before opening the hopper, close the gate before stopping or turning, and avoid excessive overlap. For applications where maximum uniformity is required, two perpendicular half-rate passes can help reduce visible skips and stripes.
After use, clean the hopper, spinner, metering mechanism, wheels, and drive components so fertilizer residue does not interfere with future calibration.
QHM provides walk-behind and tow-behind spreader options for lawn care, landscaping, commercial grounds, and agricultural use. Selecting the right spreader and calibrating it for the actual fertilizer are the two most important steps toward accurate, repeatable application.
There is no universal setting. Start with the fertilizer manufacturer's recommended spreader setting if available, then calibrate the machine using the actual fertilizer, application rate, and normal walking or towing speed.
Fertilizers differ in particle size, density, shape, coating, and moisture content. These characteristics affect how quickly granules pass through the hopper opening and how far they are thrown.
Yes. Walking more slowly generally increases the amount applied per unit area, while walking faster reduces it. Use the same steady speed during calibration and actual spreading.
Measure a known area, load a known amount of fertilizer, make a test pass at normal operating speed, then weigh the remaining fertilizer. Compare the amount applied with the target rate and adjust the spreader setting as needed.
Broadcast spreaders generally require controlled overlap because fewer granules reach the outside edges of the pattern. Use the effective spread width rather than the maximum distance reached by individual granules.
Yes. Two perpendicular passes can improve uniformity, but each pass should deliver only half of the total target application rate.
Striping can result from inconsistent pass spacing, changing walking speed, excessive overlap, incorrect calibration, clogged outlets, or an uneven spinner pattern.
Usually not. Grass seed and fertilizer have different particle sizes, densities, and flow characteristics, so each material should be calibrated separately.
Walk-behind models provide maneuverability for smaller or complex lawns. Tow-behind models are more efficient for larger open areas. Accuracy depends primarily on calibration and consistent operation.
Recalibrate when changing fertilizer, changing the target rate, using a different operator, changing normal operating speed, repairing the spreader, or observing uneven lawn response.
Yes. Moisture can cause fertilizer to clump or bridge inside the hopper, producing irregular flow. Granular fertilizer should generally be dry and free-flowing during application.
Fertilizer residue can attract moisture, corrode metal parts, block the metering mechanism, and change future application rates. Cleaning helps maintain accurate operation and equipment life.
Consider lawn size, hopper capacity, spread width, rate adjustment, wheel size, terrain, corrosion resistance, material type, maintenance requirements, and whether a walk-behind or tow-behind design better matches the application.
